Railbin
Railbin Model Series

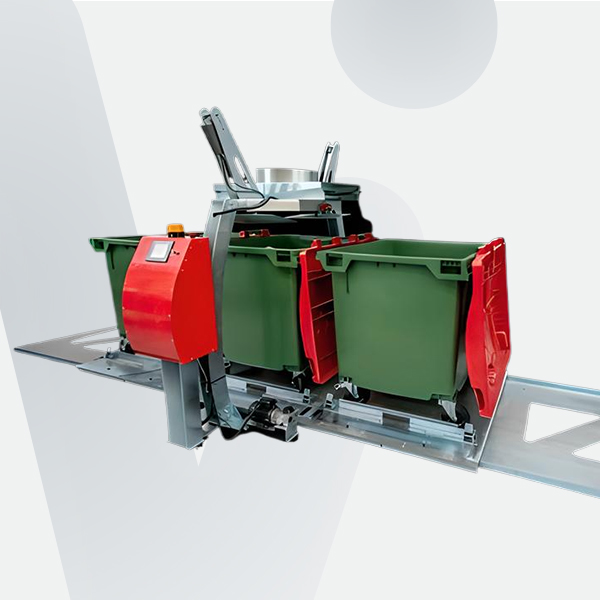

Linear Bin Mover with Compactor
(Suitable for 660 & 1100 Litre Bins)
FEATURES
Rotobin is a cost effective, fully automated unit specifically designed for the collection & compaction of rubbish within high density residential applications. Working on a rotation basis, as each bin fills, the compactor base automatically rotates positioning an empty bin under the chute when required. Designed to fit directly under a garbage chute or loading dock. Offers a compaction ratio of up to 2:1 into the listed bin types for removal by hand to the collection area. Works perfectly in conjunction with the EnviroTube or Steel Chute Models. Suits plastic mobile garbage bin sizes from 240ltr up to 1100ltr
INSTALLATION
Electrical connection by cord and plug (as supplied). Can be direct wired by an electrician. (GPO fitted on roof above control pod position ideal).
Unit should be installed by qualified ASI JD Macdonald technicians. Unit is fixed to the floor with dyna bolts.
SPECIFICATION
● Electrical: AC, 230-240V, 50/60Hz, 10A
● Rotation Motor: Geared 50:1 240V 50Hz 1600w (1430 RPM Adjustable)
● Compaction Actuator: 24volt dc 10A (max. 6200 nm Adjustable)
● Strobe light – 24 volt dc (active before and during rotation)
● Control and notifications via touchscreen
● Manual and Auto modes available
● Electric Safety Requirement: AS/NZS 60335.2.23:2012
● Gross weight: approx. 900-1200kg
FINISH
Plated zinc mild steel or various sizes and grades. Floor plate made from 6mm plated checker plate. Control pod is powder coated mild steel.
ROUGH OVERALL DIMENSIONS
1100 & 660ltr Models– 3.8m diameter x 1.5m height (2.3m with compactor)
230 & 360ltr Models– 3.3m diameter x 1.3m height (2.1m with compactor)
Discharge height- 1.5m
ROTOBIN MODELS
RB-A-6000 Four bin 1100ltr version with compaction
RB-A-6000-1 Four bin 1100ltr version without compaction
RB-A-6000-2 Four bin 660ltr version with compaction
RB-A-6000-3 Four bin 660ltr version without compaction
RB-A-6000-4 Six bin 240ltr version with compaction
RB-A-6000-5 Six bin 240ltr version without compaction
RB-A-6000-6 Four bin 360ltr version with compaction
RB-A-6000-7 Four bin 360ltr version without compaction
